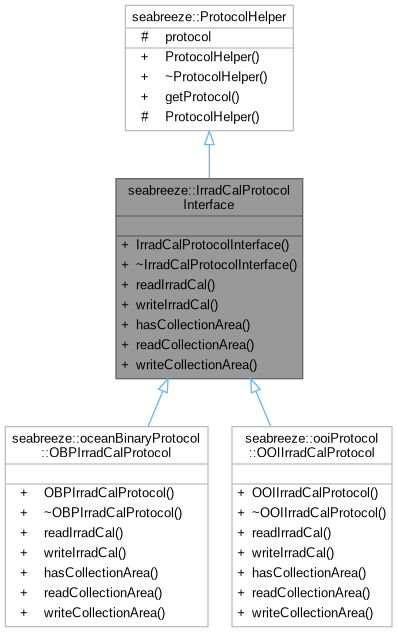

Inheritance diagram for seabreeze::IrradCalProtocolInterface:

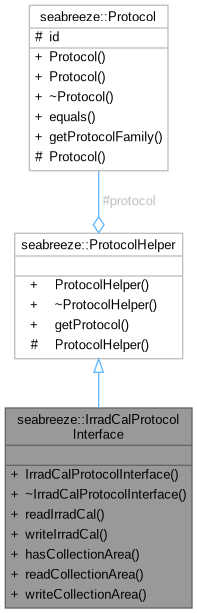

Collaboration diagram for seabreeze::IrradCalProtocolInterface:

Public Member Functions
	IrradCalProtocolInterface (Protocol *protocol)

virtual std::vector< float > *	readIrradCal (const Bus &bus)=0

virtual int	writeIrradCal (const Bus &bus, const std::vector< float > &cal)=0

virtual int	hasCollectionArea (const Bus &bus)=0

virtual float	readCollectionArea (const Bus &bus)=0

virtual void	writeCollectionArea (const Bus &bus, float area)=0

Public Member Functions inherited from seabreeze::ProtocolHelper
	ProtocolHelper (Protocol *proto)

Protocol &	getProtocol ()

Additional Inherited Members
Protected Attributes inherited from seabreeze::ProtocolHelper
Protocol *	protocol

Member Function Documentation

◆ readIrradCal()

virtual std::vector< float > * seabreeze::IrradCalProtocolInterface::readIrradCal ( const Bus & bus )

pure virtual

Get the irradiance calibration from the device.

virtual int seabreeze::IrradCalProtocolInterface::writeIrradCal	(	const Bus &	bus,
		const std::vector< float > &	cal
	)

pure virtual

Write a new irradiance calibration to the device.

virtual int seabreeze::IrradCalProtocolInterface::hasCollectionArea ( const Bus & bus )

pure virtual

Determine whether the device has a stored irradiance collection area. This will trap any exceptions so it is always safe to call.

virtual float seabreeze::IrradCalProtocolInterface::readCollectionArea ( const Bus & bus )

pure virtual

Get the irradiance collection area from the device.

virtual void seabreeze::IrradCalProtocolInterface::writeCollectionArea	(	const Bus &	bus,
		float	area
	)

pure virtual

Write a new irradiance collection area to the device.

The documentation for this class was generated from the following file:
