seabreeze::ThermoElectricProtocolInterface Class Reference

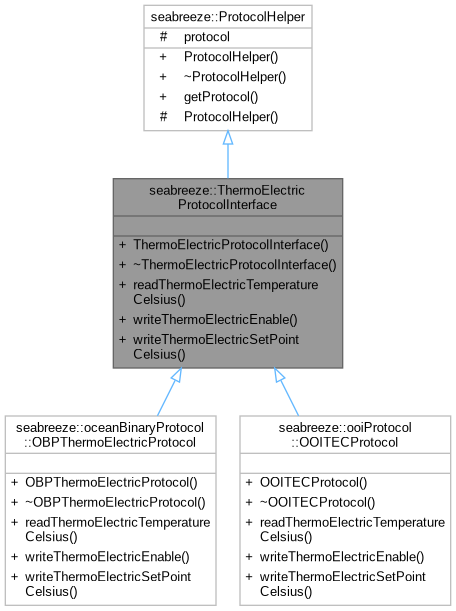

Inheritance diagram for seabreeze::ThermoElectricProtocolInterface:

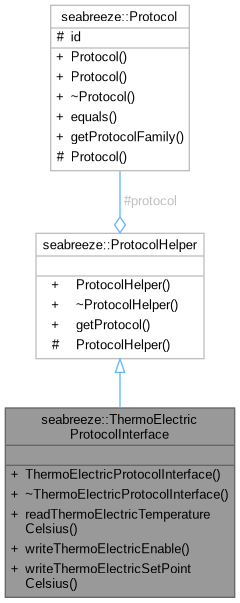

Collaboration diagram for seabreeze::ThermoElectricProtocolInterface:

Public Member Functions
	ThermoElectricProtocolInterface (Protocol *protocol)
virtual double	readThermoElectricTemperatureCelsius (const Bus &bus)=0
virtual void	writeThermoElectricEnable (const Bus &bus, bool enable)=0
virtual void	writeThermoElectricSetPointCelsius (const Bus &bus, double degreesC)=0
Public Member Functions inherited from seabreeze::ProtocolHelper
	ProtocolHelper (Protocol *proto)
Protocol &	getProtocol ()

Additional Inherited Members
Protected Attributes inherited from seabreeze::ProtocolHelper
Protocol *	protocol

Member Function Documentation

readThermoElectricTemperatureCelsius()

virtual double seabreeze::ThermoElectricProtocolInterface::readThermoElectricTemperatureCelsius ( const Bus &  bus )

pure virtual

Get the temperature of the thermoelectric device.

Implemented in seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol, and seabreeze::ooiProtocol::OOITECProtocol.

writeThermoElectricEnable()

virtual void seabreeze::ThermoElectricProtocolInterface::writeThermoElectricEnable ( const Bus &  bus, bool  enable  )

pure virtual

Enable the thermoelectric unit on the device.

Implemented in seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol, and seabreeze::ooiProtocol::OOITECProtocol.

writeThermoElectricSetPointCelsius()

virtual void seabreeze::ThermoElectricProtocolInterface::writeThermoElectricSetPointCelsius ( const Bus &  bus, double  degreesC  )

pure virtual

Set the target temperature for the thermoelectric in degrees Celsius. The actual temperature that the device can reach may be a function of ambient temperature.

Implemented in seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol, and seabreeze::ooiProtocol::OOITECProtocol.

---

The documentation for this class was generated from the following file:

• ThermoElectricProtocolInterface.h
