seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol Class Reference

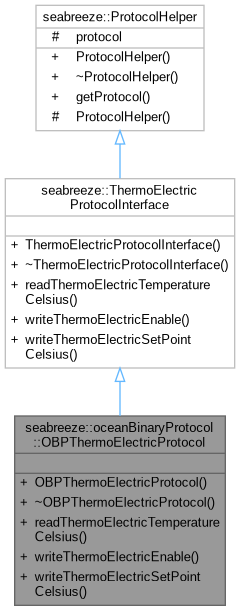

Inheritance diagram for seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol:

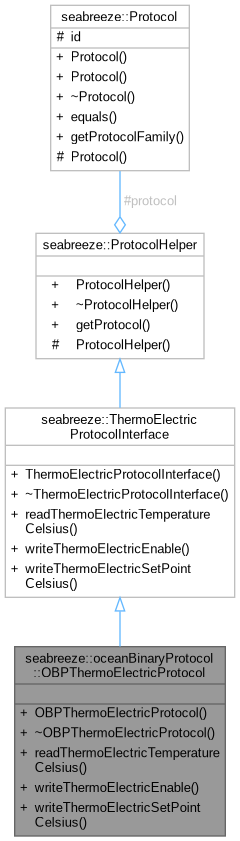

Collaboration diagram for seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol:

Public Member Functions
virtual double	readThermoElectricTemperatureCelsius (const Bus &bus)
virtual void	writeThermoElectricEnable (const Bus &bus, bool enable)
virtual void	writeThermoElectricSetPointCelsius (const Bus &bus, double degreesC)
Public Member Functions inherited from seabreeze::ThermoElectricProtocolInterface
	ThermoElectricProtocolInterface (Protocol *protocol)
Public Member Functions inherited from seabreeze::ProtocolHelper
	ProtocolHelper (Protocol *proto)
Protocol &	getProtocol ()

Additional Inherited Members
Protected Attributes inherited from seabreeze::ProtocolHelper
Protocol *	protocol

Member Function Documentation

readThermoElectricTemperatureCelsius()

virtual double seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol::readThermoElectricTemperatureCelsius ( const Bus &  bus )

virtual

Get the temperature of the thermoelectric device.

Implements seabreeze::ThermoElectricProtocolInterface.

writeThermoElectricEnable()

virtual void seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol::writeThermoElectricEnable ( const Bus &  bus, bool  enable  )

virtual

Enable the thermoelectric unit on the device.

Implements seabreeze::ThermoElectricProtocolInterface.

writeThermoElectricSetPointCelsius()

virtual void seabreeze::oceanBinaryProtocol::OBPThermoElectricProtocol::writeThermoElectricSetPointCelsius ( const Bus &  bus, double  degreesC  )

virtual

Set the target temperature for the thermoelectric in degrees Celsius. The actual temperature that the device can reach may be a function of ambient temperature.

Implements seabreeze::ThermoElectricProtocolInterface.

---

The documentation for this class was generated from the following file:

• OBPThermoElectricProtocol.h
